FEATURES&BENEFITS FOR THE CARBON STEEL ANGLE VALVES

1. DESIGN&MANUFACTURE CONFORMS TO EN13709.
2. 2.FACE TO FACE COMFORMS TO EN558-1.
3. FLANGE CONFORMS TO EN1092-B1.
4. TEST CONFORMS TO EN12266-1.
5. Size : DN50--300mm
6. Pressure：PN10-64, 125-900LB
7. Medium：Water, Air, Gas, etc
8. Temperature：-29~+450 C

Quantity:
Availability:





Inquire Add to Basket

Brand:
customized or without brand

Product Description

DIN standard PN40 carbon steel Angle globe valve Material table:

ITEM	PART NAME	MATERIALS	ITEM	PART NAME	MATERIALS
1	BODY	GS-C25+13CR	11	HANDWHEEL	C.S
2	DISC	C22.8+13CR	12	HANDWHEEL NUT	C.S
3	SPLIT RING	13CR	13	SHIM	S.S
4	DISC SCREW	C22.8+13CR	14	LOCKING SCREW	S.S
5	STEM	2CR13	15	EYE BOLT	A193-B7
6	GASKET	SS304+GRAPHITE	16	NUT	A194-2H
7	BONNET	GS-C25+13CR	17	PIN	C.S
8	PACKING	GRAPHITE	18	BOLT	A193-B7
9	GLAND	GS-C25	19	NUT	A194-2H
10	YOKE NUT	GGG40.3

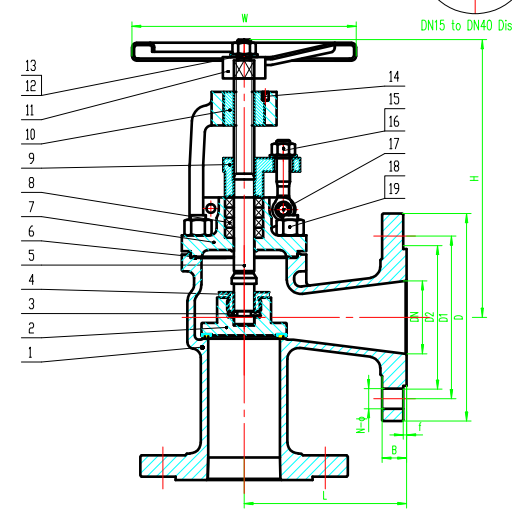

DIN standard PN40 carbon steel Angle globe valve Dimension:

DN	L	PN40
DN	L	D	D1	D2	B	f	N-φ	H	W
15	90	95	65	45	16	2	4-14	190	140
20	95	105	75	58	18	2	4-14	190	140
25	100	115	85	68	18	2	4-14	205	160
32	105	140	100	78	18	2	4-18	205	160
40	115	150	110	88	18	3	4-18	245	180
50	125	165	125	102	20	3	4-18	250	180
65	145	185	145	122	22	3	4-18	270	200
80	155	200	160	138	24	3	8-18	315	250
100	175	220	190	162	24	3	8-22	370	300
125	200	250	220	188	26	3	8-26	430	350
150	225	300	250	218	28	3	8-26	470	400

DIN angle valve angle globe valve carbon steel valve angle type
