CI DI Duo Check Valve

JIS 5K 10K Duo Check Valve in CI DI materials
Design:API594
Inspection:API598
End standard:JIS B2220 5K 10K
Face to Face:ISO 5752
Availability:
Quantity:
Inquire Add to Basket

wechat sharing button
linkedin sharing button
sharethis sharing button

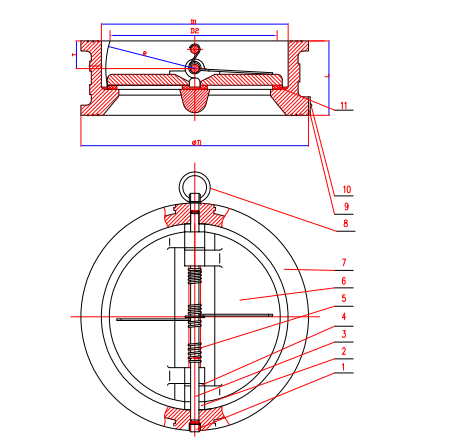

小样图


NO. NAME MATERIAL QTY
1 plug SS304 4
2 washer PTFE 2
3 Pin C61900 2
4 washer PTFE 3
5 spring SS316 2
6 plate C95400 2
7 body CI 1
8 eyebolt SS304 1
9 trademark SS304 1
10 plate rivet SS304 1
11 seat NBR 1



JIS 5K DIMENSION:HYDRO TEST:BODY:9BAR,SEAL:6BAR

SIZE D D1 D2 L R T
50 90 65 43.3 43 28.8 19
65 115 80 60.2 46 36.1 20
80 126 94 66.4 64 43.4 28
100 146 117 90.8 64 52.8 27
125 181 146 116.9 70 65.7 30
150 211 170 144.6 76 78.6 31
200 257 224 198.2 89 104.4 33
250 322 265 233.7 114 127 50
300 367 310 283.9 114 148 43
